mechanical coupling on an electric motor is a device that connects the motor's rotating shaft to another rotating component (like a pump or gearbox) to transmit power and rotational motion, while also allowing for some degree of misalignment.

Here's a more detailed explanation:

Function:

Power Transmission:

The primary function of a coupling is to transmit torque and rotational power from the motor to the driven machine.

Shaft Connection:

Couplings connect the shafts of the motor and the driven machine, allowing them to rotate together.

Misalignment Accommodation:

Couplings can be designed to accommodate various types of misalignment between the shafts, such as parallel, angular, or axial misalignment, which can occur due to manufacturing tolerances or thermal expansion.

Types of Couplings:

Rigid Couplings:

These couplings provide a fixed connection between the shafts and are suitable for applications where the shafts are precisely aligned.

Flexible Couplings:

These couplings allow for some degree of misalignment and can absorb shocks and vibrations.

Examples of flexible couplings:

Gear Couplings: Use gears to transmit torque and allow for some misalignment.

Grid Couplings: Use a flexible grid to transmit torque and allow for misalignment.

Membrane Couplings: Use flexible membranes to transmit torque and allow for misalignment.

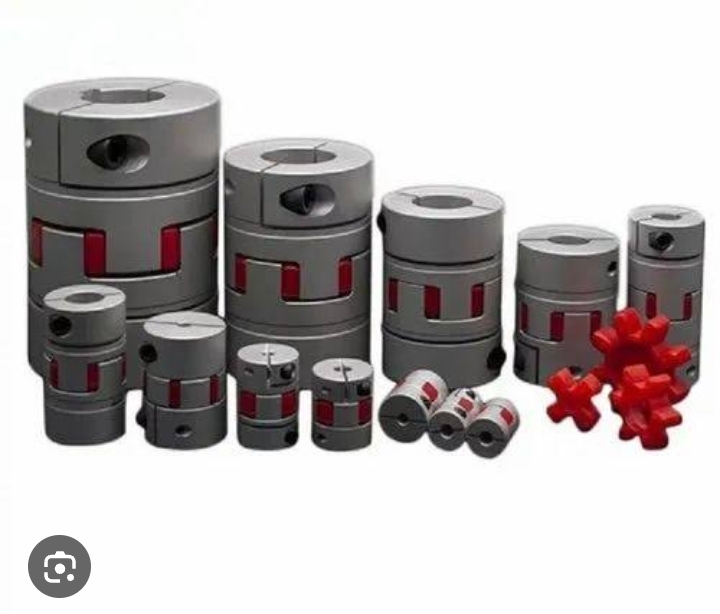

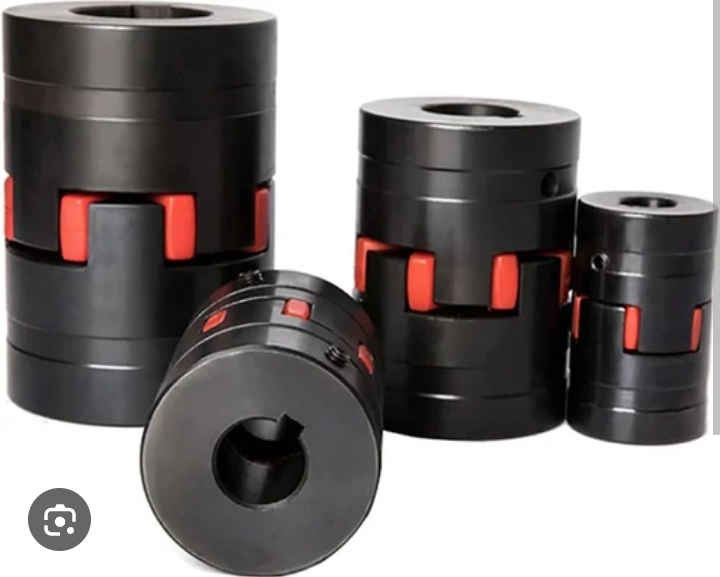

Jaw Couplings: Use flexible jaws to transmit torque and allow for misalignment.

Rubber Bushing Couplings: Use rubber bushings to absorb shocks and vibrations.

Other Types:

Torque Limiters: Some couplings have torque-limiting capabilities, allowing them to slip or disconnect when a specified torque limit is reached.

Benefits of Using Couplings:

Improved Performance:

Couplings can help to improve the overall performance of the driven machine by ensuring smooth and reliable operation.

Reduced Vibration and Wear:

Flexible couplings can help to reduce vibrations and uneven wear by accommodating misalignment.

Simplified Maintenance:

Couplings can make maintenance easier by allowing for easy disconnection and replacement of the driven machine.

Choosing the Right Coupling:

The type of coupling that is best suited for a particular application depends on a number of factors, including:

The type and amount of misalignment that needs to be accommodated .

The torque and speed of the shafts .

The operating environment .

The need for shock absorption or vibration damping .
